Smart Medical

—

Scheme Overview

—

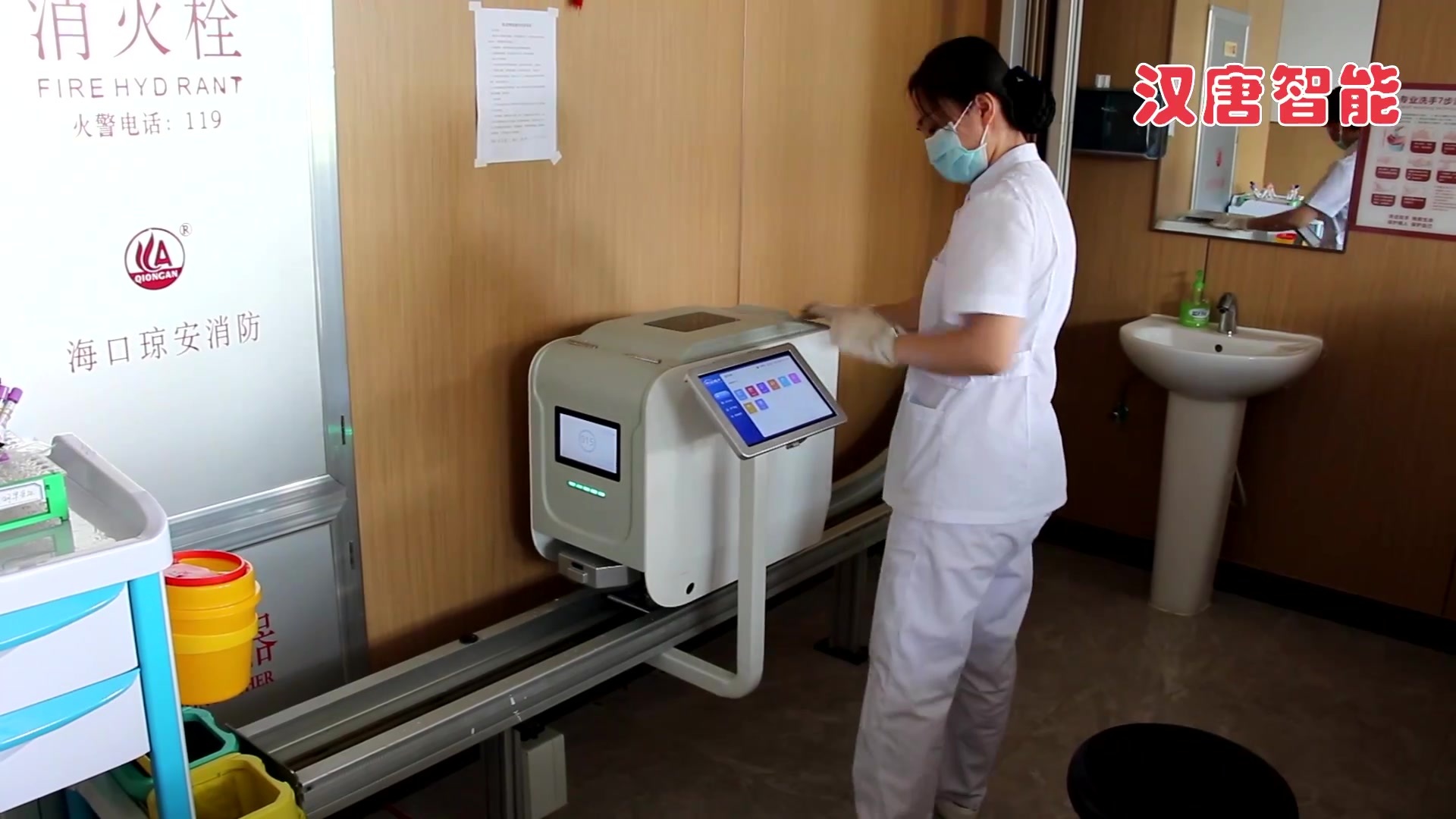

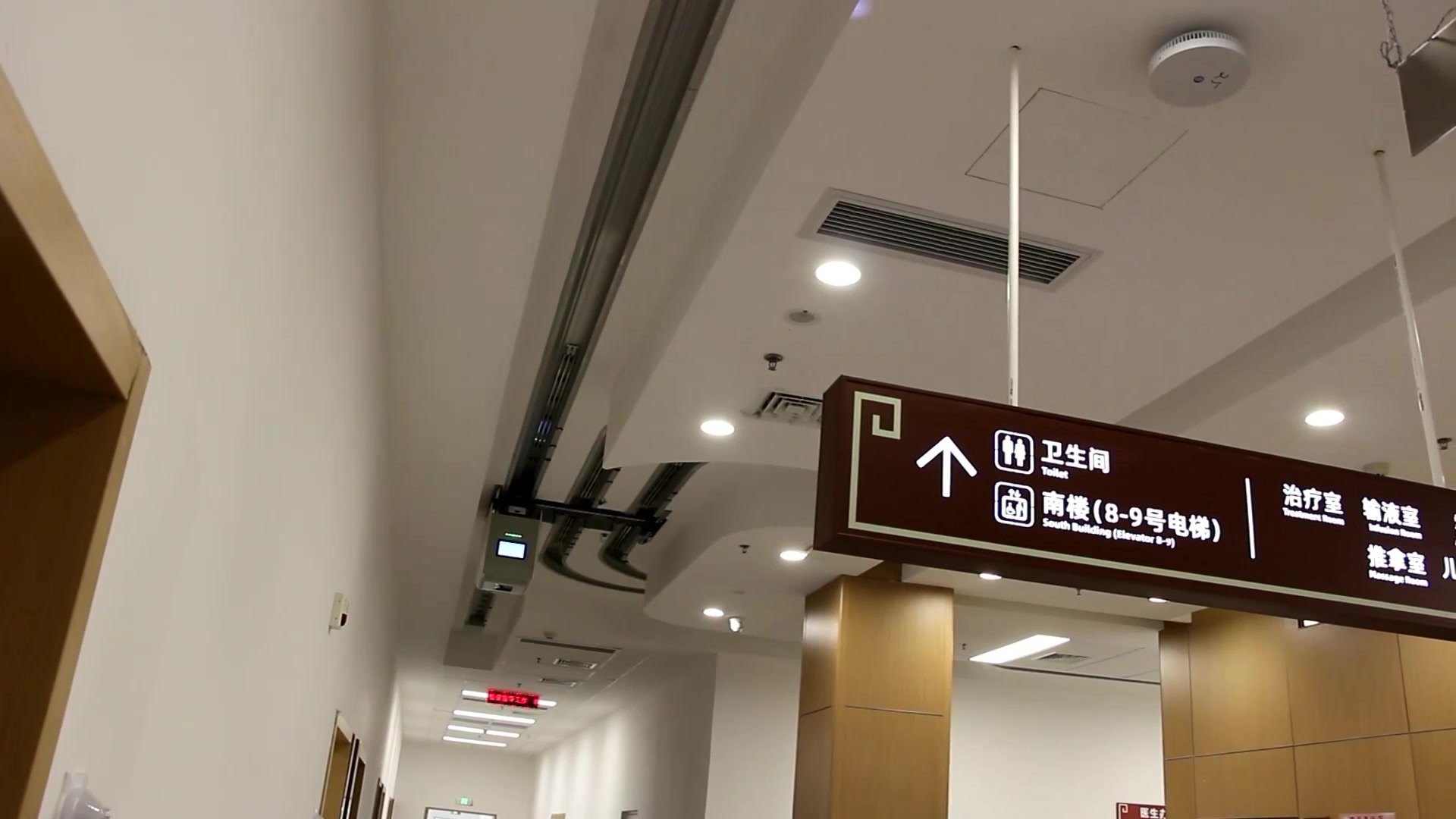

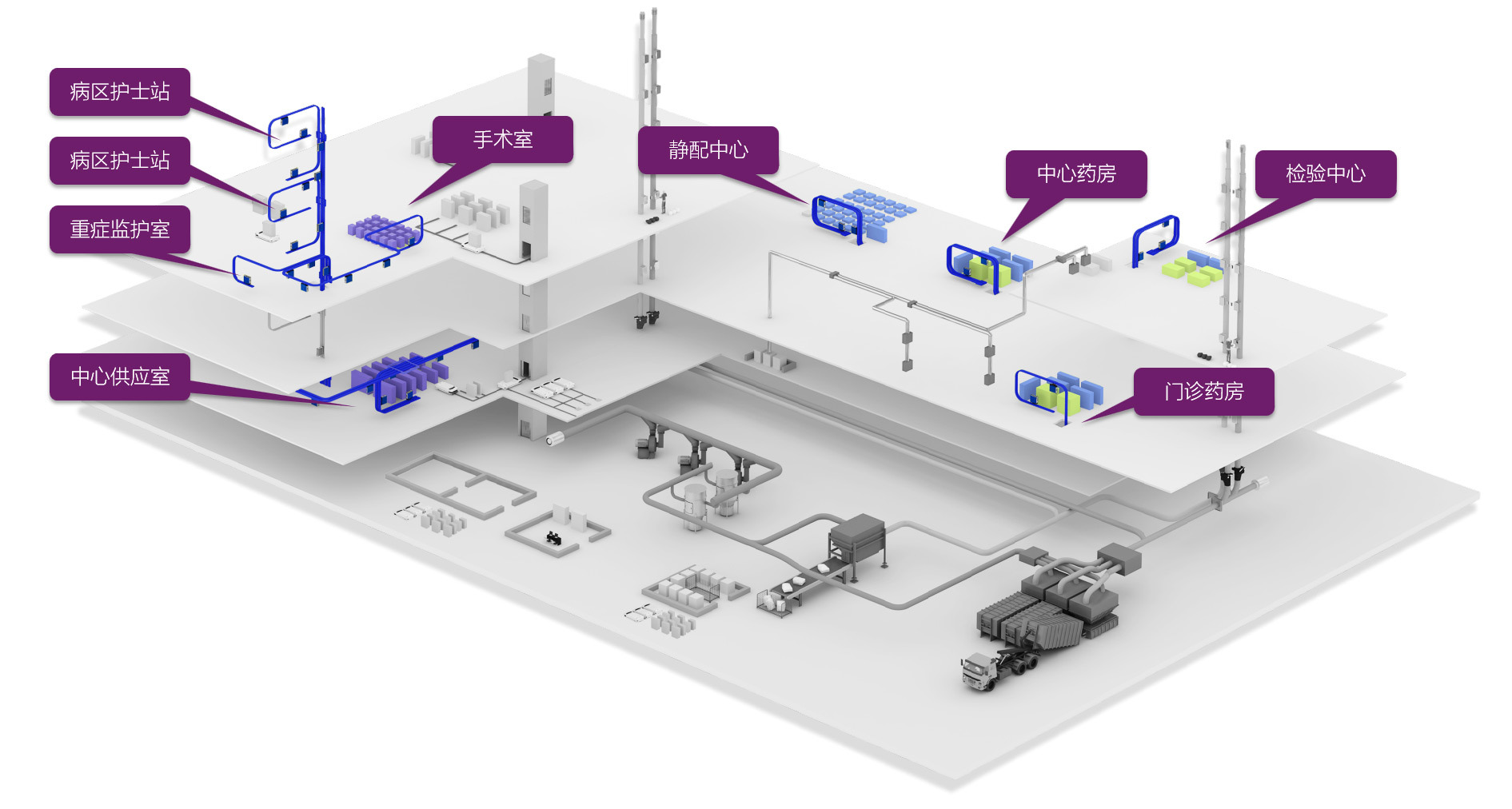

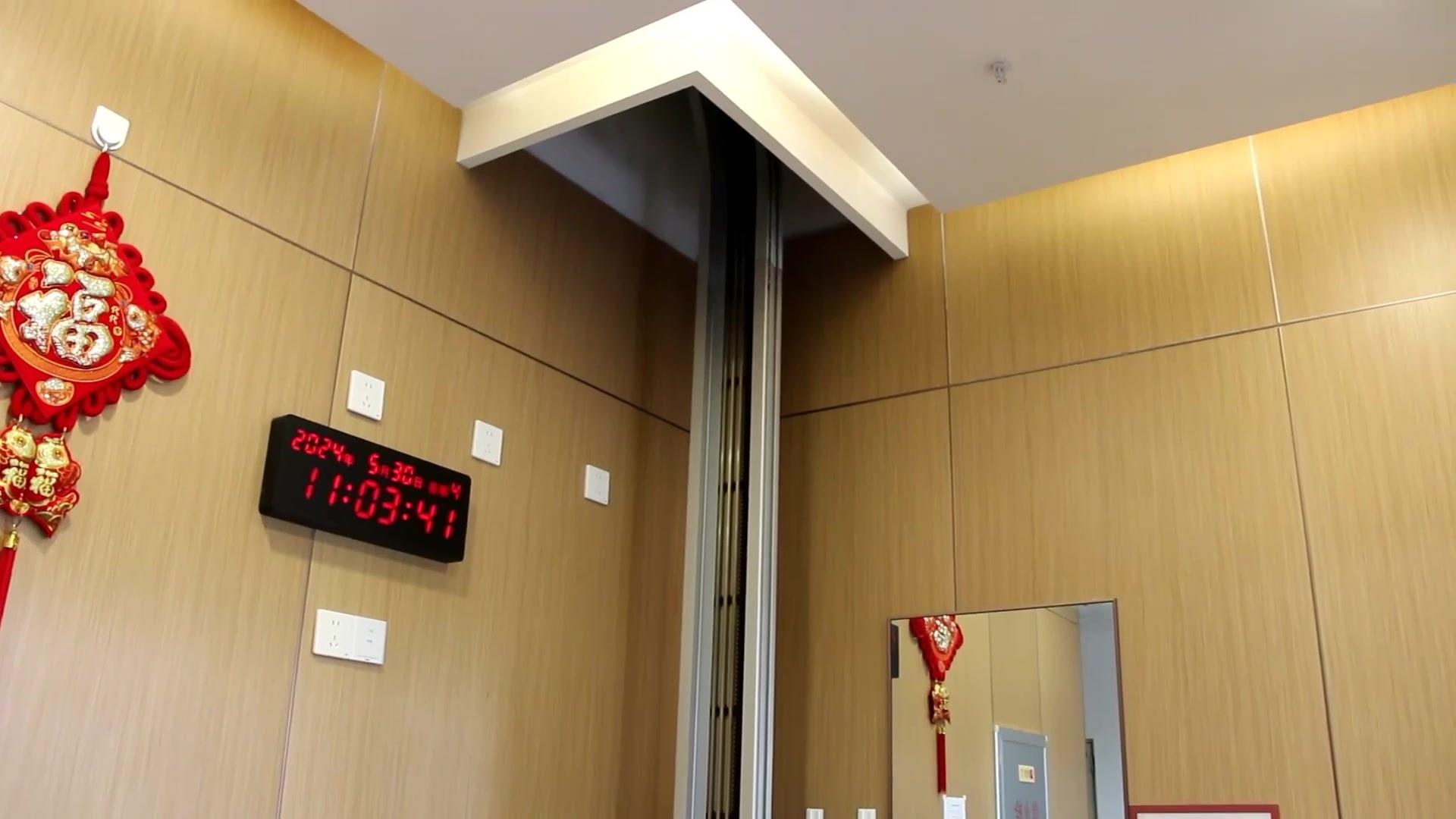

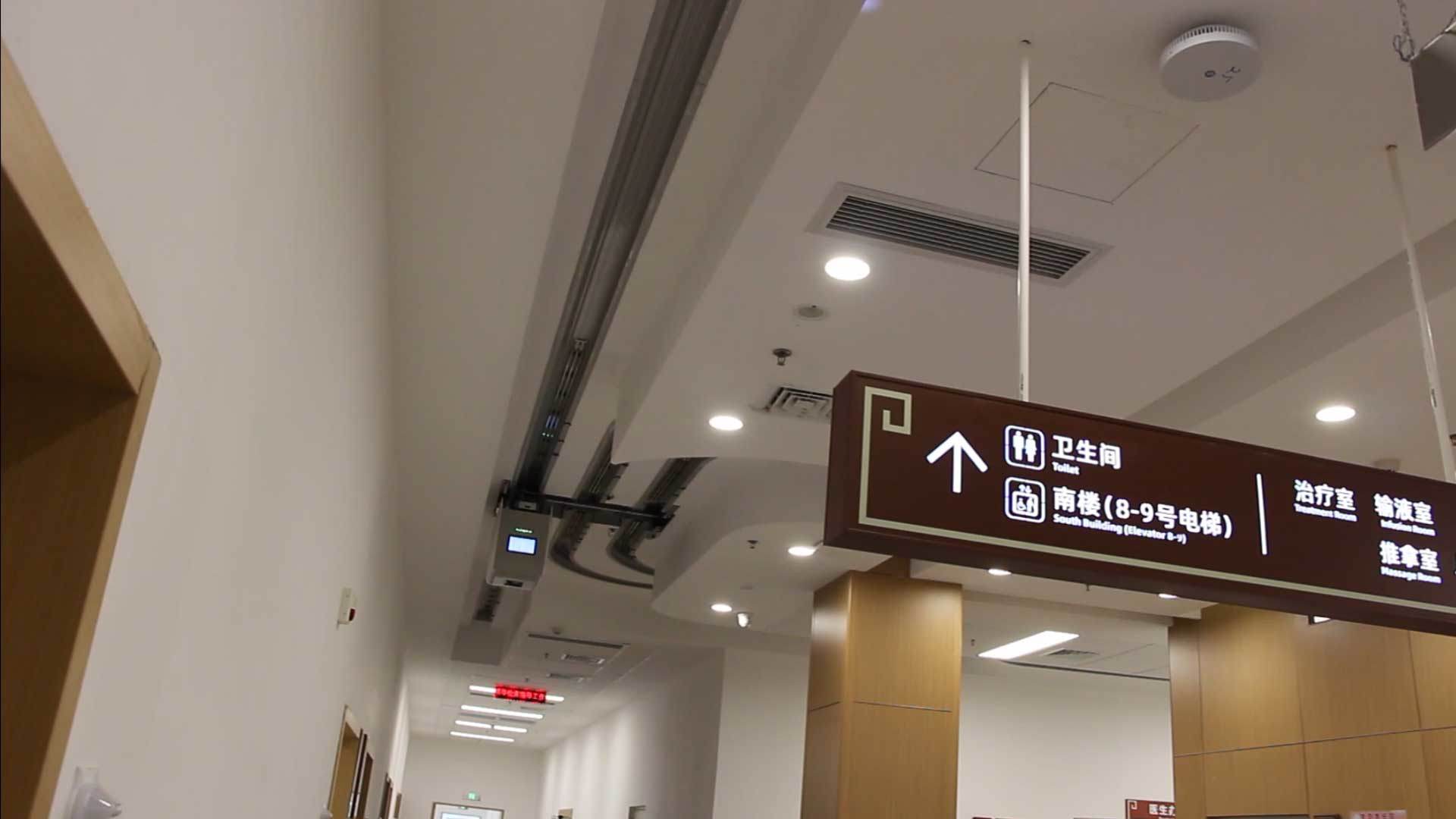

The intelligent medical rail logistics system consists of running tracks, track trolleys, workstations, turntables, fire windows, empty vehicle storage stations, station controllers, and an intelligent control system. The system adopts a distributed topology structure and can be flexibly arranged according to the hospital's building structure to achieve item transmission in both horizontal and vertical directions. The system has a disinfection function to meet hospital infection control requirements. The intelligent track trolley with a built-in level gauge can transport reagents and blood samples that cannot be tilted, comprehensively covering the hospital's transportation needs. The intelligent medical rail trolley logistics transportation system will greatly improve the medical environment, reduce operating costs, enhance the hospital's competitiveness and Brand image, and is a trend in hospital modernization.

产品特点

PRODUCT

FEATURES

Quadruple antibacterial disinfection, calmly meeting the challenges of hospital-acquired infections

● The vehicle body uses antibacterial ABS material and antibacterial coating; ● The vehicle is standard equipped with a ultraviolet disinfection lamp, with a sterilization rate of >99.9% for Escherichia coli and Staphylococcus aureus; ● Dedicated for medical supplies transportation, divided into clean and dirty vehicles; ● Supports the addition of vehicle body and well disinfection systems.

**The final interpretation of the above website content belongs to the company, and the actual delivery of products is subject to the specific technical requirements of the project plan.

Applicable Scenarios

—

Solve the problem of static distribution

To meet the needs of large quantity of material distribution tasks, high frequency, large number of long orders, and irregular receipt and delivery of temporary orders.

Hospitalization building:
Drugs, infusions, test samples, medical consumables, non-medical consumables, case files, small instrument kits, treatment kits

Surgical Department/ICU:
Sterile equipment sets, anesthesia, first aid drugs, pathological specimens, infusion, medical consumables, non-medical consumables, treatment kits, blood products

Outpatient Building:
Drugs, treatment kits, infusions, medical consumables, non-medical consumables, test samples, medical records

Central Supply:
Sterile instrument package, disposable sterile product, treatment package

Laboratory/Pathology:
Test samples, medical consumables and inspection reports

Emergency Building:
Drugs, treatment kits, infusions, medical consumables, non-medical consumables, test samples, medical records, office supplies, blood products

Administration Building:
Non-medical consumables, office supplies, documents and archives

Static distribution center

Central Supply

Nurse Station

Pharmacy

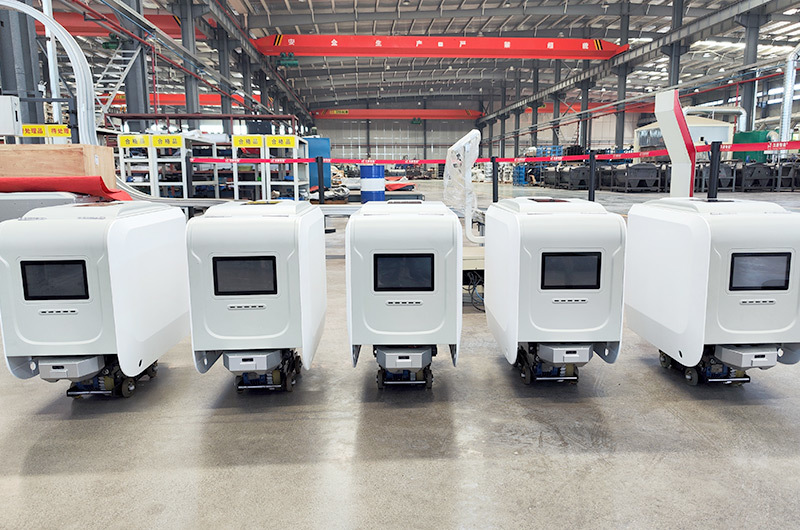

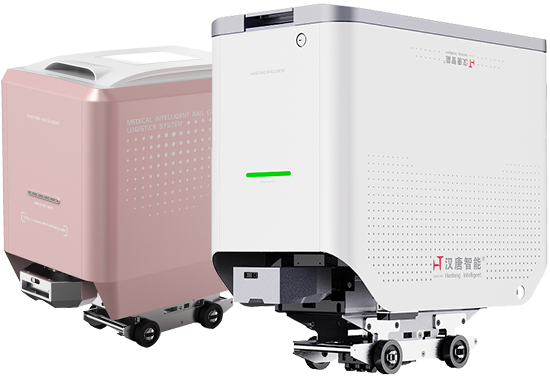

Intelligent car

—

● Horizontal speed: 0.6 m/s (Max)
● Vertical speed: 0.4 m/s(Max)
● Trolley load: 30 KG(Max)
●Trolley volume: 35 L
● Drive voltage: 36V safe DC
● Configure UPS (Uninterruptible Power System)
● Configuration of UV sterilization function and silver ion anti-fouling coating
● Can be built-in level, so that the car items always maintain a level state
● The color of the car body can be customized by the customer.
● Monitor the running condition of the trolley
